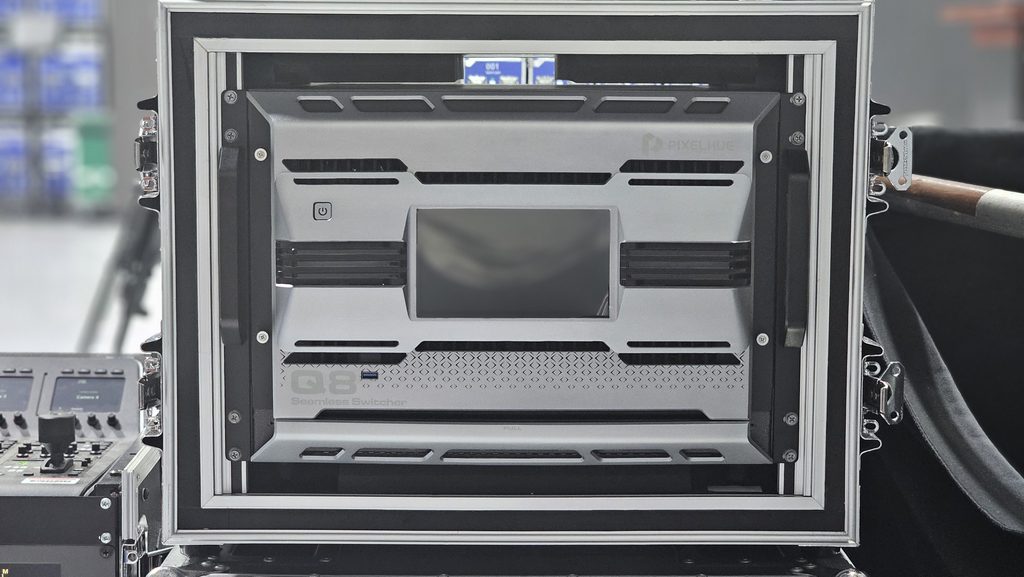

Shown in image: Pixelhue Q8
Pixelhue Q8
The Pixelhue Q8 is a switcher and scaler supporting multiple HDMI inputs, 4K UHD output resolution, and multi-layer windowing with independent source scaling and positioning. An intuitive touchscreen front panel, web-based remote control, and preset-based workflow make it a practical and reliable signal management solution for corporate events, conferences, and live productions.
Why AV Actions Added the Pixelhue Q8 to Our Inventory
If you’ve worked with us on a large-scale event before, you know we’re always looking for gear that makes our clients’ lives easier on show day. That’s exactly why we brought the Pixelhue Q8 into our fleet. It’s not a display panel or an LED wall itself, it’s the seamless switcher that sits between your video sources and your screens, making sure everything looks sharp, synced, and exactly where it needs to be.
What the Q8 Actually Does
Think of the Q8 as the brain behind a multi-screen setup. It takes in feeds from cameras, laptops, media servers, and slide decks, then routes and blends them across however many LED walls, monitors, or projection surfaces you’re running. For hotel ballrooms hosting galas, product launches, or executive conferences, this means presenters can move between speaker slides, live camera shots, and video content without a single hiccup.
Key Specs
- Up to 72 4K input connectors and 48 4K output connectors, with 48 simultaneous 4K inputs and 16 simultaneous 4K outputs
- Support for 32 true 4K mixing layers in switcher mode, or 64 single 4K layers in PGM only mode
- Connector options including HDMI 2.0, DisplayPort 1.2, 12G SDI, 10G SFP+, and ST2110
- FPGA based architecture with a SuperView scaling engine and latency as low as one frame
- HDR support across SDR, HLG, and HDR10, plus color space processing for BT.601, BT.709, BT.2020, and DCI P3
- Built in chroma and luma keying for graphics overlays and virtual sets
- 2x 4K multiviewer (MVR) so operators can preview every source before it hits the big screen
- Single mode fiber transmission up to 10 km, useful when the control booth is far from the stage
- Direct optical connection to NovaStar controllers like the VX1000, NovaPro UHD Jr, H series, MCTRL 4K, and MX40 Pro
- Runs alongside Pixelhue’s PixelFlow software and the U5 or U5 Pro event controller for hands on show control
How We’re Using It
For our hotel clients in the DC and Alexandria area, the Q8 shines in a few specific scenarios:
Ballroom conferences with multiple screens. When a client wants IMAG (image magnification) on side screens plus a confidence monitor for the speaker, the Q8 handles all of it from one box instead of us cobbling together several smaller switchers.
Product launches and galas. The keying and layering features let us build polished, branded visuals, think logo overlays, picture in picture camera feeds, or slide transitions that actually look intentional instead of jarring.
Broadcast style events. If a client is livestreaming a keynote or recording for later use, the multiviewer lets our operator keep an eye on every camera and graphic before it ever goes live.
Large scale LED wall deployments. Paired with our LED cabinets or posters, the Q8 manages the signal path so the wall displays a clean, edge blended image rather than a stitched together mess.
Why It’s Worth Asking For
A lot of venues have the screens. What separates a smooth show from a stressful one is what’s feeding those screens. The Q8 gives our technicians the flexibility to adjust on the fly, whether that’s swapping a source mid presentation or fixing a last minute content change without anyone in the room noticing.
If you’ve got an event coming up that involves more than a couple of video sources, or you’re just not sure what kind of processing your setup needs, reach out. We’re happy to walk through your floor plan and figure out whether the Q8 is the right call, or if something simpler gets the job done.
